At On Yer Bike, we strive to ensure we provide all of our customers with the bikes YOU want, that’s why we are now proud stockists of Amflow bikes, powered by the famous DJI Avinox motor.
We have both models of bike available (PL Carbon & PL Carbon Pro) for demo/hire so you can truly get a feel for the bike before commiting!

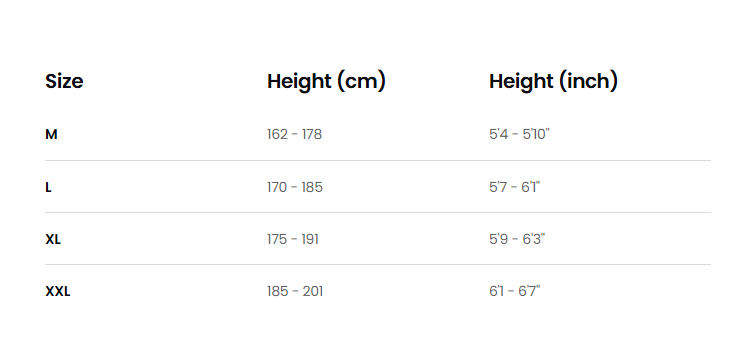

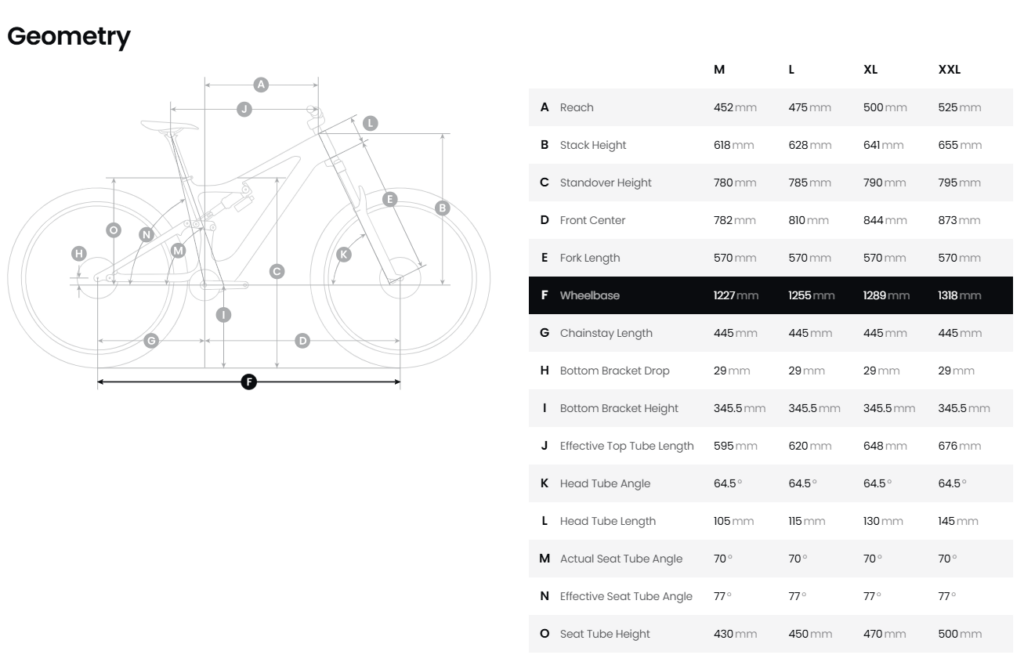

To make choosing the correct size easier, we have added both a size guide and geometry numbers below! Get it right first time.
| Specification | Amflow PL Carbon (800Wh) | Amflow PL Carbon Pro (600Wh/800Wh) |
|---|---|---|
| Frame | Amflow PL Carbon Frame, Satin Silver, 150mm rear travel, Compatible with 27.5″ and 29″ rear wheels | Amflow PL Carbon Frame, Cosmic Black, 150mm rear travel, Compatible with 27.5″ and 29″ rear wheels |
| E-Bike System |

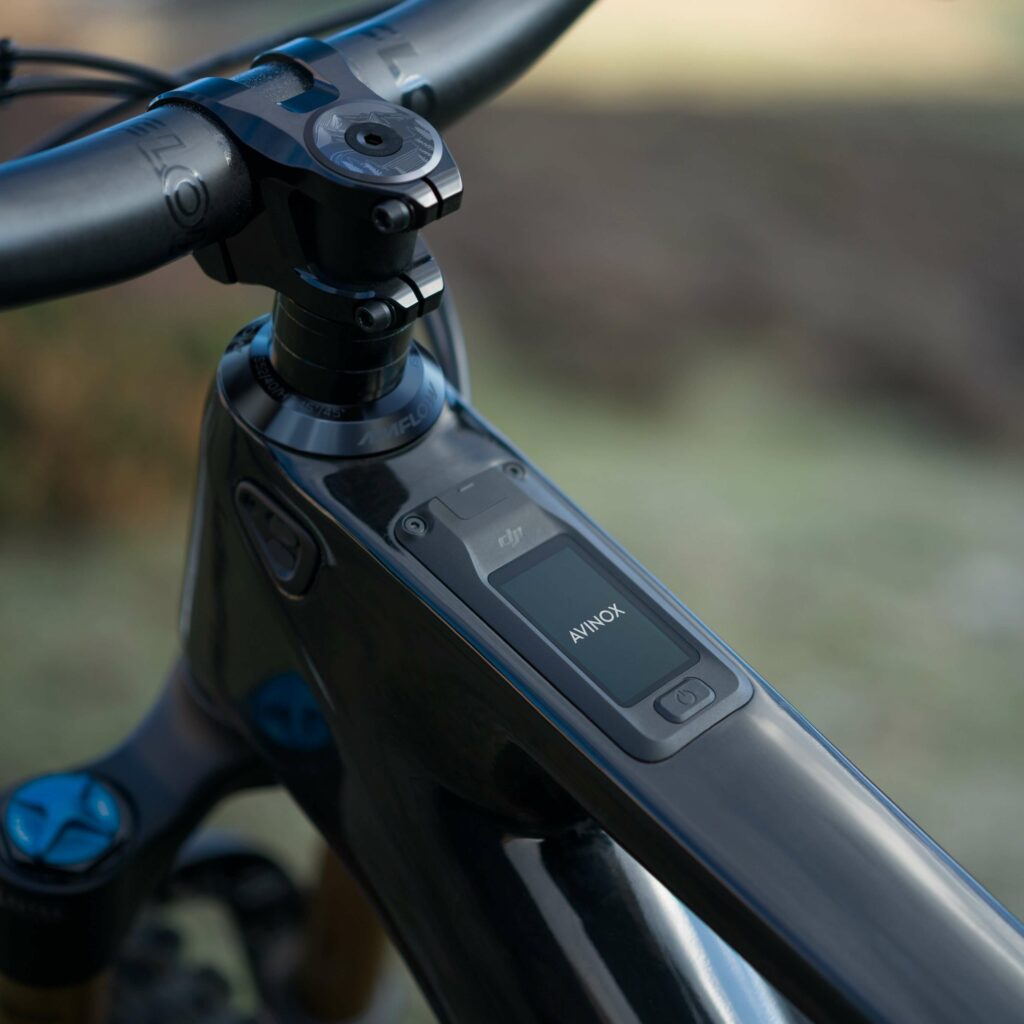

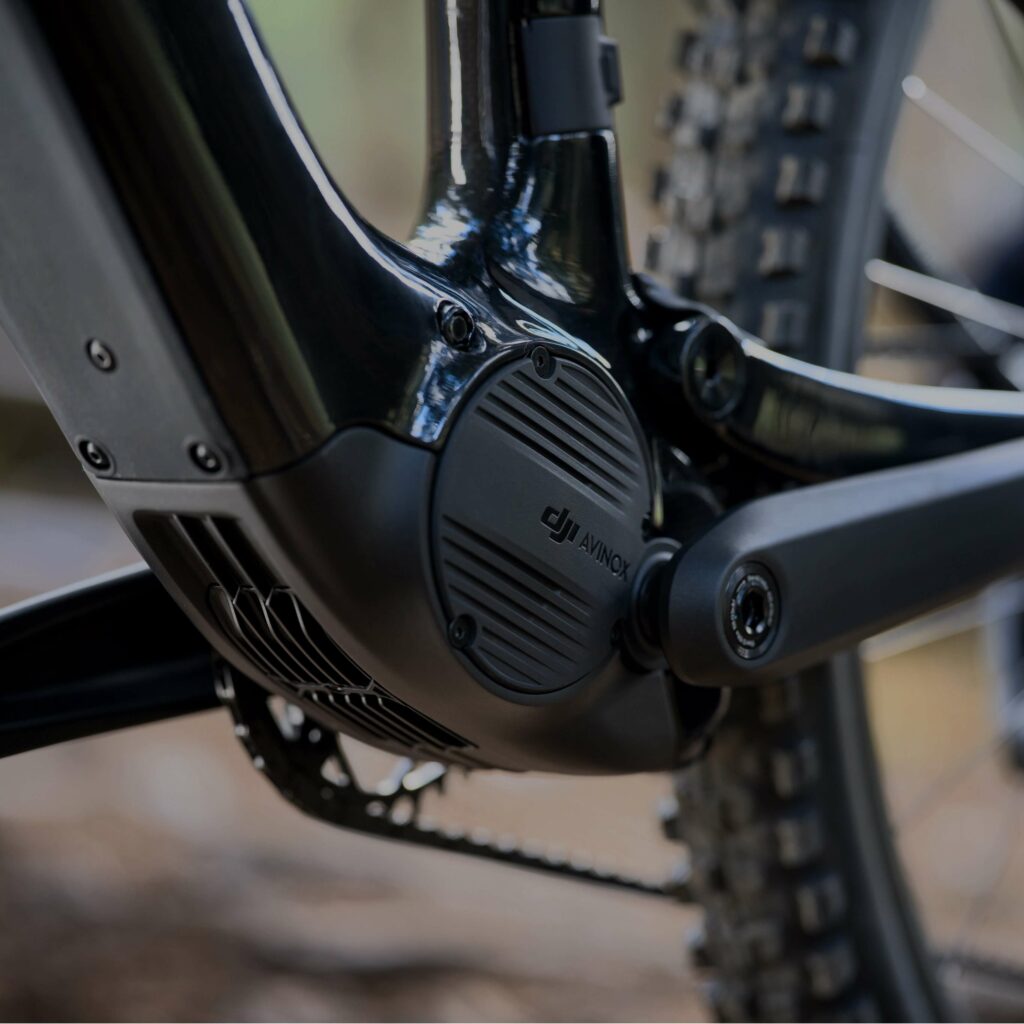

Avinox M1 Drive Unit: 105 N·m 2″ OLED Display 800Wh Integrated Battery Wireless Controllers (L/R) Fast Charger: 12A/508W |
Avinox M1 Drive Unit: 105 N·m 2″ OLED Display 600Wh/800Wh Integrated Battery Wireless Controllers (L/R) Fast Charger: 12A/508W |

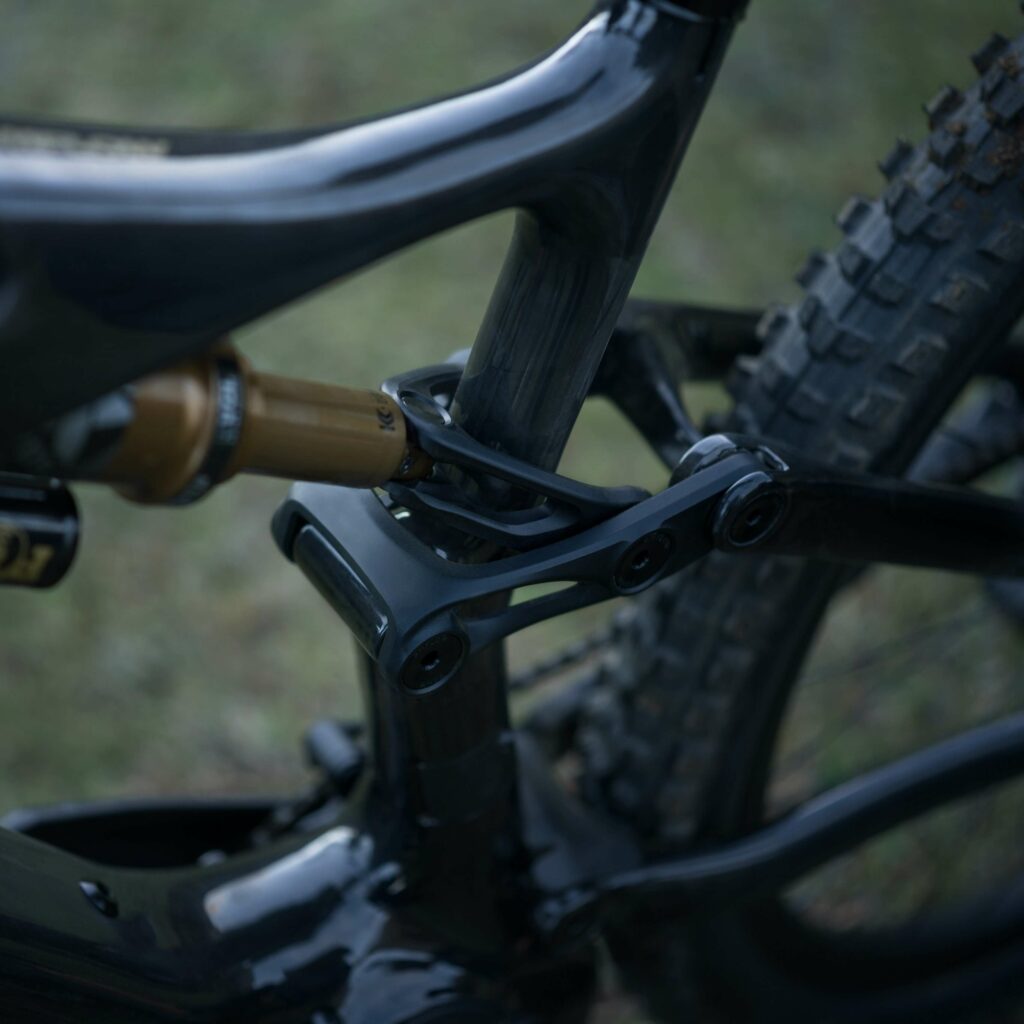

| Rear Shock | FOX Float Performance, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever | FOX FLOAT X Factory, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment |
| Fork | FOX 36 Performance, 160mm, GRIP Damper, 15×110mm, 44mm rake | FOX 36 Factory, 160mm, GRIP X2 Damper, 15×110mm, 44mm rake |
| Transmission |
SRAM GX Eagle 12-speed GX Eagle Trigger Shifter｜Single Click SRAM PG-1230, 11-50T Cassette SRAM NX Eagle Chain SRAM Eagle Transmission E-MTB Chainring 34T DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
SRAM X0 Eagle Transmission Derailleur SRAM AXS Pod Controller SRAM XS-1295 Eagle Transmission 10-52T Cassette SRAM X0 Eagle Transmission Flattop Chain SRAM Eagle Transmission E-MTB Chainring 34T DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |

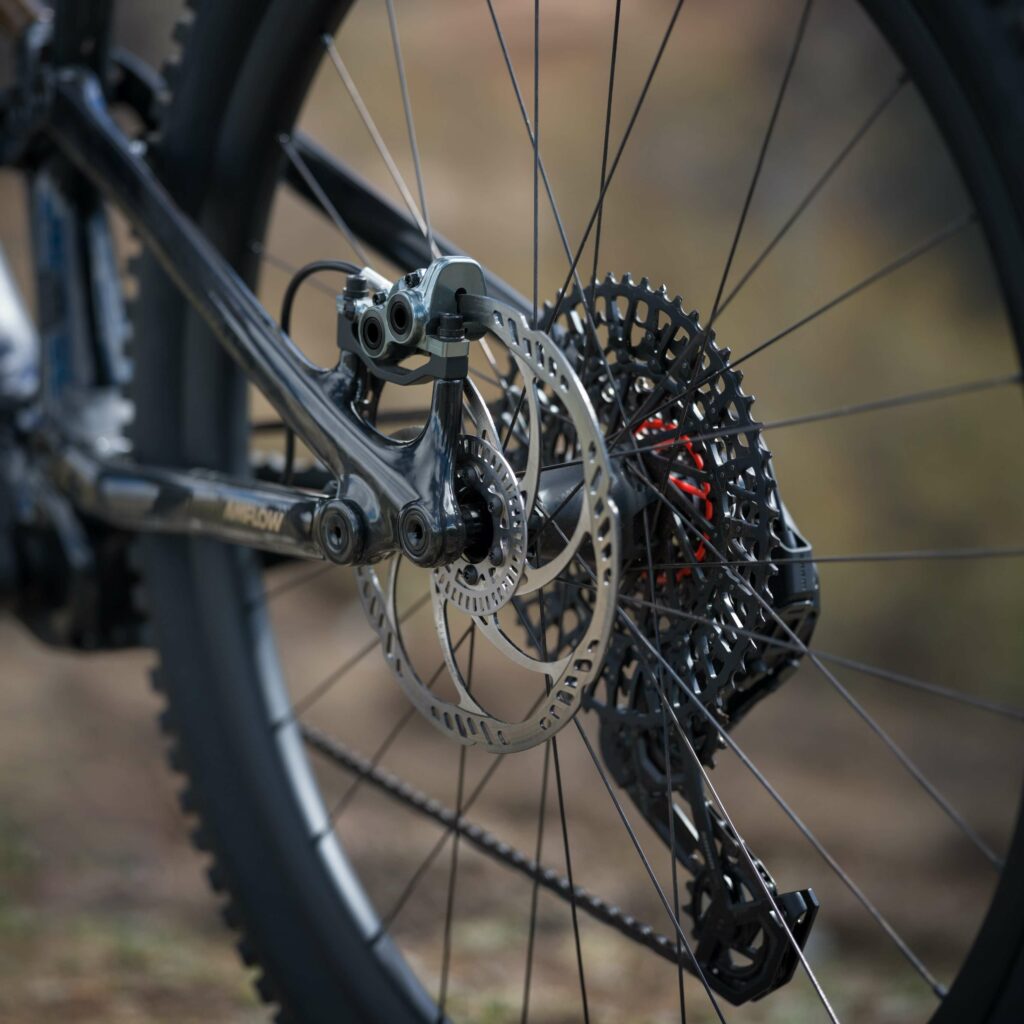

| Brakes | Magura MT5, 4-piston, HC lever, 203mm MDR-C rotors | Magura MT7 Pro, 4-piston, HC lever, 203mm Storm HC rotors |
| Wheels |
Amflow HMA-30 Alloy Rims (29″, 30mm), 32H, SAPIM E-Light J-bend Front Hub: 15×110mm, 6-bolt Rear Hub: 148×12mm, 6-bolt, 21T |
Amflow HMC-30 Carbon Rims (29″, 30mm), 28H, SAPIM E-Light Straightpull Front Hub: 15×110mm, 6-bolt Rear Hub: 148×12mm, 6-bolt, 78T |
| Tires |
Front: Maxxis Assegai MaxxTerra 29×2.5″ WT 3C EXO E-25 TLR Rear: Maxxis Dissector MaxxTerra 29×2.4″ WT 3C EXO+ E-25 TLR |
Front: Maxxis Assegai MaxxTerra 29×2.5″ WT 3C EXO E-
